wire-to-board connector white PA66 materials 1.0mm pitch CI16 wire housing with lock

Brand Name : HRT

Model Number : A1017HA-NP

Certification : ISO9001/ ISO14001/UL/RoHS/REACH

Place of Origin : Dongguan, China(mainland)

MOQ : 5000 pcs

Price : USD0.001 to 0.5 per pcs

Payment Terms : TT, Western Union, PayPal, L/C

Supply Ability : 1000K pcs per month

Delivery Time : 5 to 8 working days after payment checked

Packaging Details : bag with outside paper carton

Suitable terminals : A1017T series

Suitable wafer : A1017W series

Mating lock : with

Wire range : AWG28# to 32#

Flammability : UL94V-0

Row : single

Contact Now

1, The specification of the product

Basic size information
Color white
Material PA66
Pitch 1.0mm
Terminal material phosphor bronze
Finish terminals tin-plated
Circuits(positions) 2pins to 20pins
Wire Insulation Diameter 0.92mm Max.
Part No. A1017HA-NP
Electrical properties
Current Rating 1A AC, DC
Voltage Rating 125V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 100mΩ min
Withstanding Voltage 500V AC/minute
Mechanical properties
Temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.

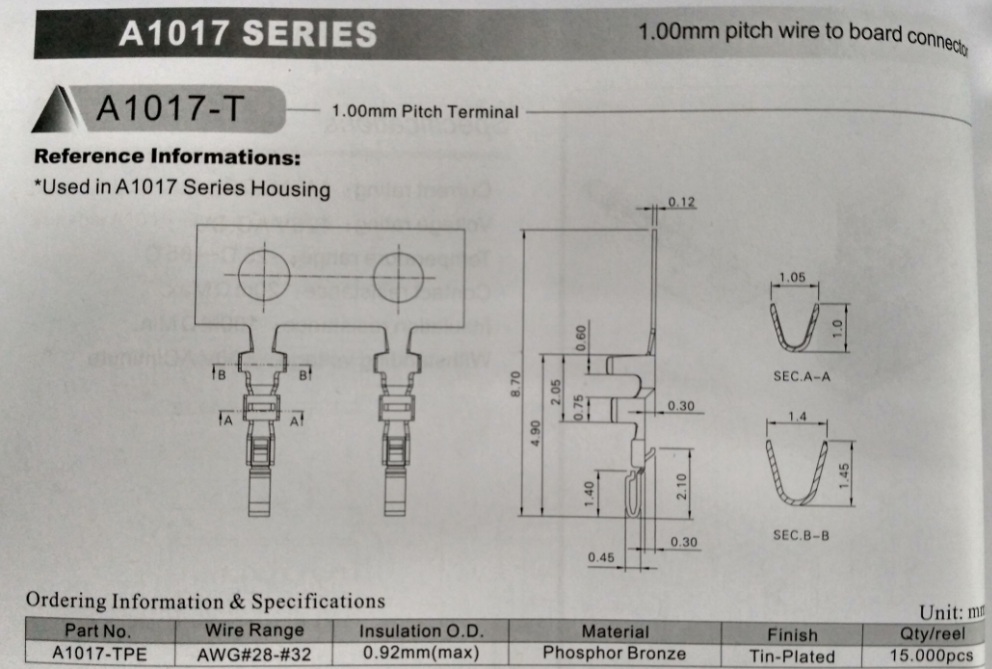

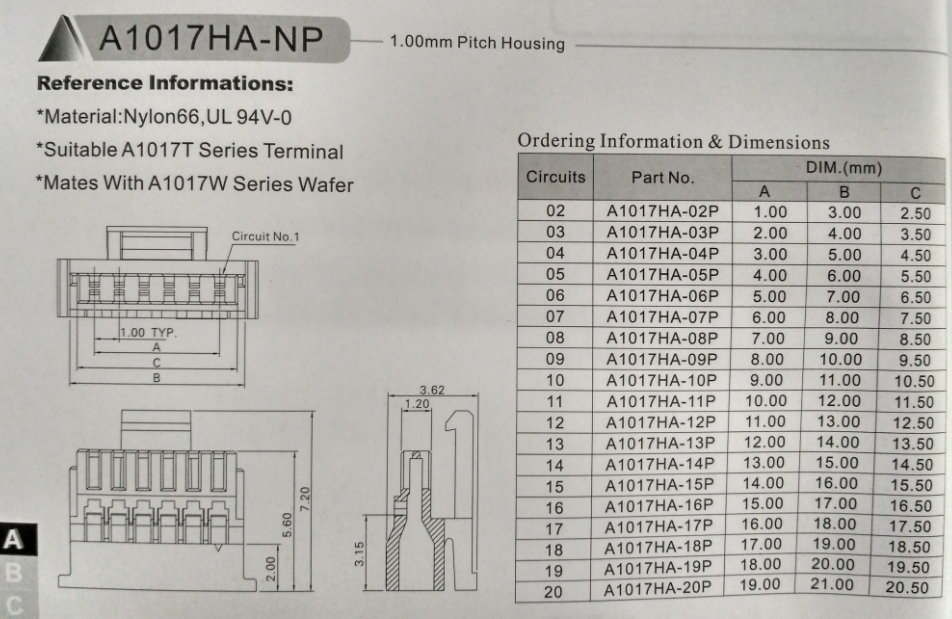

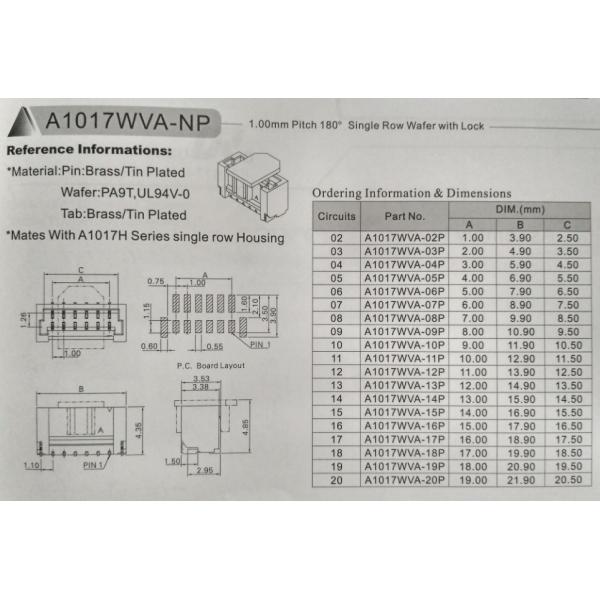

2, Related drawing and report

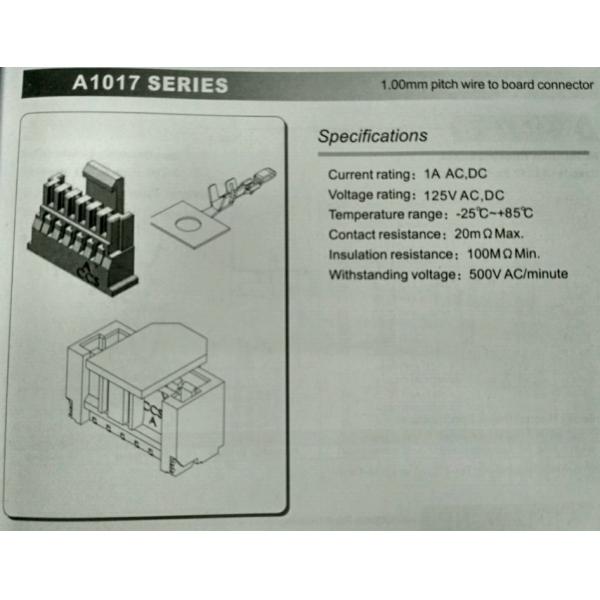

A1017 series wire to board connector

wire-to-board connector white PA66 materials 1.0mm pitch CI16 wire housing with lock

wire-to-board connector white PA66 materials 1.0mm pitch CI16 wire housing with lockwire-to-board connector white PA66 materials 1.0mm pitch CI16 wire housing with lock

wire-to-board connector white PA66 materials 1.0mm pitch CI16 wire housing with lock

3, FAQ
Q: Can we have our own brand packaging? How?
A: Yes,we have designer in house to meet customized packaging requirment, all you have to do is let us know your idea or demands.

Q: Does your products print exactly the same as original?
A: Compatible products(high quality equivalents with our own brand) were known for its favourable prices and accurate size as originals.

Q: What is your MOQ for sample order?
A: All size sample orders are welcome. we do believe your idea to increase order gradually.

Q: What about guarantee?
A: One on one exchange for defectives exceed our guarantee rate.
